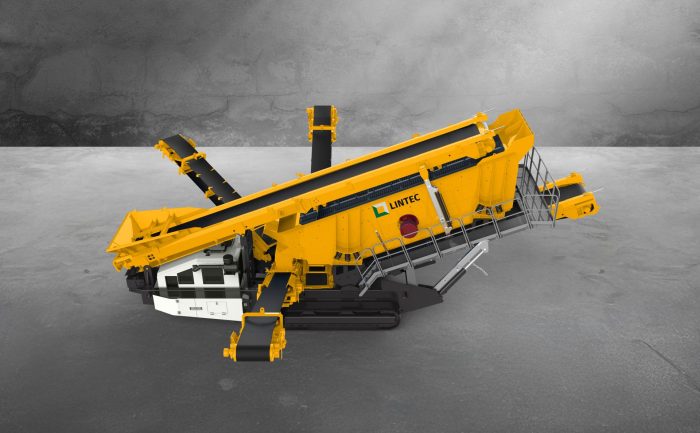

Lintec TSC Tracked Screen Mobile Unit

Click to enlarge

ABOUT

The Lintec TSC Tracked Screen Mobile Unit with an on-board Generator Set can be easily incorporated into the Lintec TLJ Tracked Jaw and Lintec TLC Tracked Cone Mobile Units to form a complete mobile crushing and screening solution. Powered with electricity, the Lintec TSC is equipped with a 3-Deck Screen and four product conveyors making it capable of producing four end products or three end products along with one recirculation material.

Description

FEATURES & BENEFITS

  • Easy incorporation: Can be easily integrated into Lintec TLJ Tracked Jaw and Lintec TLC Tracked Cone Mobile Units for a complete mobile crushing and screening solution.
  • Electric-powered: Equipped with an on-board generator set.
  • Versatile screening capabilities: Features a 3-Deck Screen and four product conveyors.
  • Multiple end products: Capable of producing four end products or three end products along with one recirculation material.

SPECIFICATIONS

Description TSC 6018-3E TSC 6020-3E
Capacity

160 – 400 t/h

160 – 500 t/h
Crusher Model

SC6018-3 (Inclined)

SH6020-3 (Horizontal)
Weight

21,000 kg

22,500 kg
Dimensions (W x L x H)

3,000 mm x 12,000 mm x 4,300 mm

3,000 mm x 12,500 mm x 4,400 mm

Specifications are subject to technical modifications.

Additional information
Crusher Plant Type

Tracked Plants
Crusher Type

Screen
