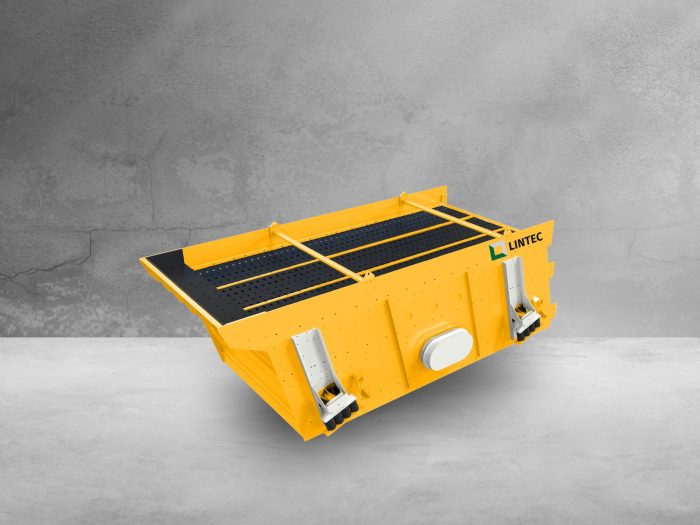

Lintec LSA Screen
ABOUT
The Lintec LSA Screen features robust deck frames with HUCK bolting screen body along with weld free side plates and modular vibration exciter.
Description
FEATURES & BENEFITS
- The shaft line is positioned at the center of gravity resulting in perfect circular motion of the screen
- Adjustable slope angle from 15°-20°
- Circular motion with up to 4G
- High safety design
- High quality wear protection
- Automatic lubrication, modular screen media, spray system and dust encapsulation are available as options
SPECIFICATIONS
| Description | LSA 1845 | LSA 2060 |
|---|---|---|
|
Capacity |
300 t/h |
400 t/h |
|
Screen Size (W x L) |
1,870 mm x 4,880 mm |
1,870 mm x 6,100 mm |
|
Slope |
18 – 22° |
18 – 22° |
|
Speed |
720 – 960 rpm |
720 – 960 rpm |
|
Stroke |
8 – 13 mm |
8 – 13 mm |
|
Power |
30 kW |
30 kW |
|
Weight |
10,500 kg (3 Decks) 12,000 kg (4 Decks) |
12,900 kg (3 Decks) 14,000 kg (4 Decks) |
|
Seperation Size |
5 – 300 mm |
5 – 300 mm |
Specifications are subject to technical modifications.
