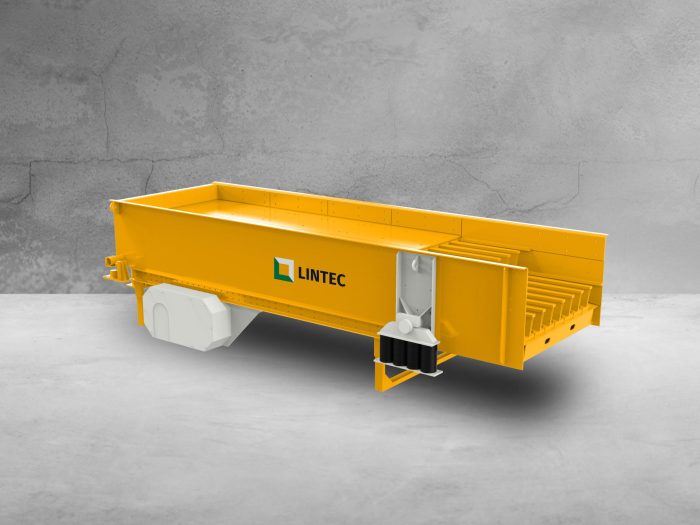

Lintec LFD Grizzly Feeder
ABOUT
The Lintec LFD Grizzly Feeder features heavy-duty double shaft mechanism with synchronised gears lubricated for extended service intervals. The frame body and decks are fastened by HUCK bolts to ensure overall strength.
Description
FEATURES & BENEFITS
- Acceleration up to 5.5G ensures feeding efficiency and preventing blocking
- Gear wheel transmission for easy adjustment of stroke angle
- Spring pedestals to adjust inclination
- Replaceable wear plates on all exposed surfaces
- A cross-tensioned optional second deck can be installed to remove naturel fines
SPECIFICATIONS
| Description | LFD1260 |
|---|---|
|
Capacity |
710 – 1090 t/h |
|
Pan Width Feed Length (W x L) |
1,220 mm x 6,000 mm |
|
Slope |
0 – 10° |
|
Speed |
500 – 1000 rpm |
|
Stroke |
4 – 10 mm |
|
Grizzly Length |
2 x 900 mm |
|
Power |
22 kW |
|
Weight |
6,855 kg |
|
Max Feed Size |
≤900 mm |
Specifications are subject to technical modifications.
