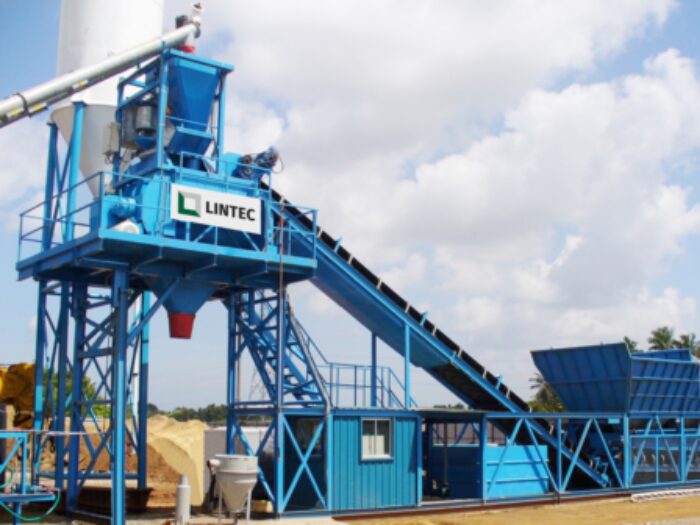

Lintec PCP Portable Concrete Batching Plant

ABOUT

The Lintec Portable Concrete Plants are completely modular and portable and are designed for total flexibility. This portable wet mix plant is designed in modules for enhanced portability and easy transportation. The plants can be set up on a prepared compacted surface without any need for a foundation. They can be easily and quickly installed or dismantled.

Description

FEATURES & BENEFITS

SPECIFICATIONS

Model PCP60 PCP60 PCP85 PCP90 PCP120
Rated Output Capacity*
60 m3/hr
60 m3/hr
85 m3/hr
90 m3/hr
120 m3/hr
Mixer Type
Twin-Shaft Mixer
Planetary Pan Mixer
Planetary Pan Mixer
Twin-Shaft Mixer
Twin-Shaft Mixer
Output per Batch
1.5 m3
1.0 m3
1.5 m3
2.0 m3
3.0 m3
Aggregate Batching Sequence
Cumulative
Cumulative
Cumulative
Cumulative
Cumulative
Cement Weigher
600 kg
600 kg
900 kg
1200 kg
1200 kg
Water Weigher
250 kg
300 kg
350 kg
500 kg
500 kg
Additive Weigher
2 x 12 litres
2 x 12 litres
2 x 12 litres
2 x 20 litres
2 x 20 litres
Connection Power
90 kW
75 kW
90 kW
130 kW
180 kW
Generator Set Capacity
150 kVA
150 kVA
150 kVA
250 kVA
350 kVA

*Output based on Max 3 Aggregates Weighing

NB: All specifications are subject to changes without prior notice
