Lintec CC Containerised Concrete Batching Plant
Lintec CC Containerised Conctrete Batching Plant offers a diverse selection of sizes and performance capacities, meticulously designed with robust core components to ensure top-quality concrete mixes and an extended operational lifespan. These plants provide mobility, allowing easy relocation to adapt to changing project requirements. They also feature batch protection against adverse weather conditions, modularity for customization, wet mix capability, and low transportation costs due to their compact design. With fast setup and no need for concrete foundations, these environmentally friendly plants offer fully automated operations, plant security through lockable door access, and plug-and-play connections for hassle-free integration of components.

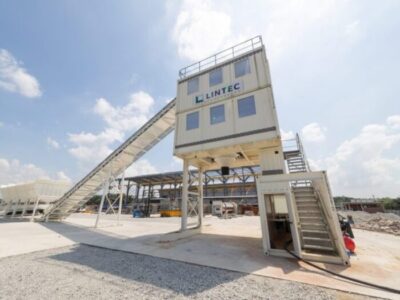

Lintec CCE Containerised Concrete Plant
Lintec’s CCE Containerised Concrete Plant ensures unparalled mobility and cost-effectiveness. The Lintec CCE Containerised series has undergone rigorous testing at our factory to ensure seamless installation and optimal performance on-site. With a setup requiring just a 50-ton crane, these plants can be operational within a week and dismantled in less than a week, enabling swift relocation to new job sites. Each plant section is housed in a 100% ISO-certified sea container, ensuring cost-effective and straightforward transportation. The plant’s stable base on compacted soil eliminates the need for concrete foundations. The Lintec CCE model features twin-stacked containers with a central stairway for easy access, facilitating maintenance for technicians and operators. Electrical fittings and components are securely built-in, safeguarding them from environmental factors. The containerised design effectively confines noise and dust emissions, while access to the plant tower is restricted to a single lockable door, ensuring security and preventing unauthorized access, theft, and vandalism.
Lintec ECP Eco Concrete Batching Plant
The Lintec ECP Portable Series presents an innovative, modular solution that not only streamlines construction processes but also significantly reduces costs. This series emphasises convenience. Its fully automated operations, compact design, and economical features make it an ideal choice for space-saving needs. By minimising foundation requirements and eliminating the need for extensive loading ramps, it optimises resource utilisation. Optional inline-bin available upon request. Whether for batch or wet mix applications, the series ensures efficient material handling. Moreover, the in-built control cabin enhances operational efficiency, while quadrant aggregate bins facilitate dual-side loading. Overall, the Lintec ECP Portable Series delivers both convenience and substantial cost savings.

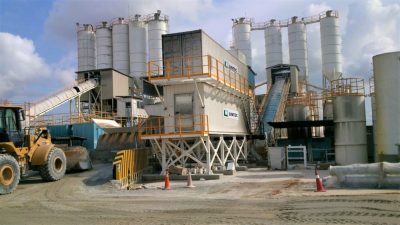

Lintec UCP Ultra Concrete Batching Plant
The highly automated Lintec UCP series is the solution for big concrete needs. With models that produce up to 250 cubic metres of ready mix concrete per hour, the UCP series meets the needs of projects requiring thousands of cubic metres a day. At the same time, the UCP ready mix concrete batching plant maintains accuracy in ensuring the quality of concrete.
The UCP series can be customised to suit the requirements of any major project. The twin-shaft mixers, controlled by computerised process control systems running on Windows OS, intensely mixes your concrete in three-dimensional movements.

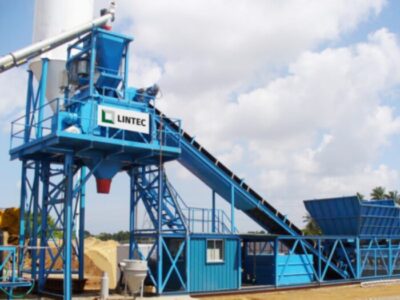

Lintec PCP Portable Concrete Batching Plant
The Lintec Portable Concrete Plants are completely modular and portable and are designed for total flexibility. This portable wet mix plant is designed in modules for enhanced portability and easy transportation. The plants can be set up on a prepared compacted surface without any need for a foundation. They can be easily and quickly installed or dismantled.
Lintec WM Basemix Plant
Lintec CSM Containerised Asphalt Mixing Plant
Embrace sustainable operations with eco-friendly technologies. Our range of CSM containerised asphalt plants comes in various sizes and performance capacities to meet any project, big or small. Each container also features a rigid ground area which ensures stability on suitably compacted soil, removing the need for concrete foundation and allowing a lower total cost of ownership.
Our company and engineers’ tried and tested expertise has allowed us to combine tradition with new technologies to produce a premium product that will suit our clients’ unique needs. Built from ISO sea containers, our flagship Lintec advanced containerised asphalt Plant is the first of its kind in the industry. It features a modular construction that allows for easy transportation and convenient installation on the job site.
Lintec CSE Containerised Asphalt Mixing Plant
Embrace sustainable operations and eco-friendly technologies with the Lintec CSE containerised asphalt mixing plant. Launched at bauma 2019, this is an evolution of the CSM containerised asphalt mixing plant which is testimony to our engineers’ tried and tested expertise, to combine tradition with new technologies to produce a premium product that suits your unique needs. Built from 100% ISO-certified sea containers, this flagship Lintec advanced containerised asphalt mixing plant is the first of its kind in the industry. Its modular construction allows for easy transportation and installation on the job site.
Lintec CSD Containerised Asphalt Mixing Plant
Built in ISO certified sea containers, our flagship Lintec containerised asphalt mixing plant is the first of its kind in the industry. The Lintec CSD asphalt mixing plant features a modular construction that allows for easy transportation and convenient installation, it’s the ideal choice for both small and big project requirements.
Lintec CDP Asphalt Mixing Plant
A premium product that will suit your needs, the Lintec CDP range features either a containerised or a mobile framework that allows for easy transportation and convenient installation on the job site. The main components of Lintec continuous asphalt mixing plant (CDP4000C) are housed in 100% ISO-certified sea containers which can be easily land-transported and sea-shipped with low freight cost. Other models’ main components come with built-in chassis for fast re-mobilisation on land.
Linnhoff TSD Mobilemix Asphalt Mixing Plant
The Linnhoff TSD MobileMix Asphalt Batch Mix Plant series features mobility with ease of installation, enabling the bitumen mixing plants to be frequently relocated to different job sites. These hot mix asphalt plants are suitable for short-term projects or projects in remote locations. It is designed to maximise the plug-and-play convenience whilst minimising the time spent on mobilisation and demobilisation, with no heavy cranes and heavy-concrete foundations required for its setup.
Linnhoff TRX TransitMix Asphalt Mixing Plant
Linnhoff TransitMix Asphalt Batch Plant (TRX) series is specially designed to be transported in sea containers for economical shipments. With a modular structure for quick set up and dismantling processes, it is a cost-efficient asphalt mixing plant highly suitable for short-term or small-scale projects.
Linnhoff CMX CompactMix Asphalt Mixing Plant
Our CompactMix Asphalt Batch Mix Plant (CMX series) is specially designed to be transported in sea containers for economical shipment. Plus, its completely modular structure grants quick set up and dismantling processes. Linnhoff CMX series is a cost-effective modular asphalt mixing plant suitable for long-term projects or commercial sales.
Linnhoff NVX Novamax Asphalt Mixing Plant
Linnhoff OMX Optimalmix Asphalt Mixing Plant
Linnhoff OMX OptimalMix Asphalt Plant is specially designed to be transported in sea containers for economical shipment. OMX’s completely modular structure grants quick setup. With the possibility to utilise Reclaimed Asphalt Pavement (RAP) materials, OMX is an environment-friendly high-capacity asphalt mixing plant suitable for medium to long-term projects or commercial sales.
Screening Technology
Our unique Screen Drum System combines the drying and screening processes of aggregates in one drum. The aggregates move through the drying drum in counterflow method. The heated aggregates drop through the slots onto the screens on the outer side of the drum. Carried by the rotation of the drum and the spiralling flights, the heated aggregates then pass through the screens into the respective hot bin without losing any heat radiated from the drum.
This results in lesser operating costs from reduced fuel consumption and maintenance costs due to the elimination of hot elevator and vibrating screens. There is no more maintenance needed from the high wear-and-tear parts of the hot elevator, plus, without hot elevator, route of dried aggregates is shortened, and unnecessary heat dissipations are eliminated. The proximity of Screen Drum to the Hot Mineral Bins ensures the maximum heat retention to the aggregates.
LEP Warm Mix Asphalt
Lintec Ecological Processing (LEP95) system is a warm mix asphalt solution available for all Lintec and Linnhoff asphalt mixing plants. It can also be retrofitted to existing asphalt mixing plants. The system uses proven technology to produce high quality asphalt at a temperature of 95-100°C with the foamed bitumen system.
HRC Hot Recycling System
Recycled Asphalt Pavement (RAP) material can be recycled with our asphalt recycling systems. Not only will this ensure your role in the conservation of our natural resources, but it will also lower your production costs by using less raw materials, such as bitumen and aggregates.
The asphalt recycling system allows the virgin asphalt plant to recycle RAP material by mixing it together with virgin aggregates for the hot mix asphalt. RAP material is gathered from excavation of road pavement or milling waste, which is then pulverised by an asphalt recycling granulator, processed and screened into different sizes required, before being mixed with the virgin aggregates. Excavated chunks of asphalt pavement would need to be crushed with an asphalt granulator to ensure that the original grain size of aggregate is maintained, and excessive fines or asphalt dust are reduced.
Up to 60% RAP material can be recycled with HRC. RAP material is heated with hot air from a hot air generator in a parallel recycling drum. The heated RAP material is then weighed before being mixed with virgin materials in the mixer of the asphalt mixing plant.

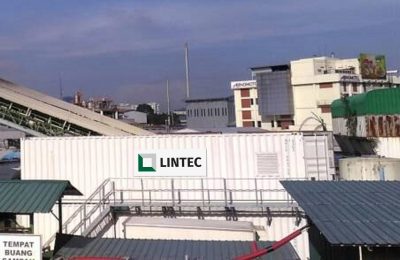

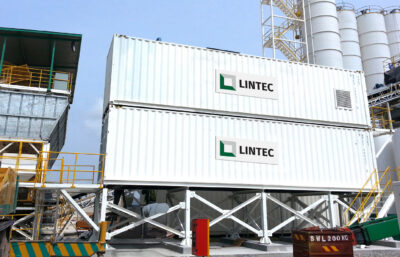

Chilled Water Plant
Flake Ice Plant

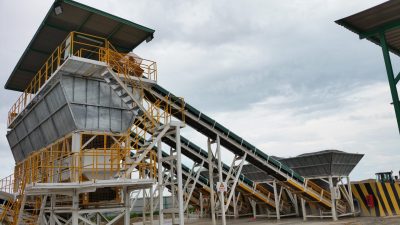

Aggregates Ground Feeding System
Lintec & Linnhoff designs and builds customised aggregates ground feeding systems. Whether you’re using a 1-swing conveyor system to feed a series of inline bins or maximising productivity by feeding each bin with an individual feed bin and conveyor, our high-performance ground feed systems provide cost-effective solutions for many large concrete producers.
Cement Pump
Designed with high efficiency and portability in mind
Our cement pump has a simple design and works with an air compressor unit. It has an electric motor to drive the cement screw and use the air compressor to pump the loaded cement into Cement Silos. This equipment works well for small to medium construction projects, achieving feats that are impossible for Bulk Cement Tanker Trucks.

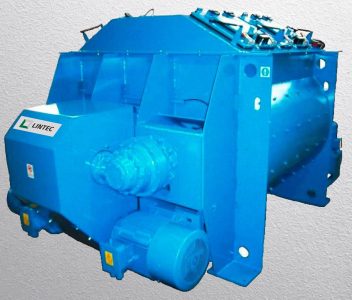

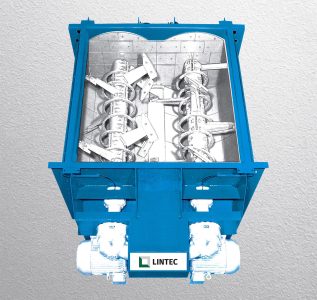

Concrete Mixer

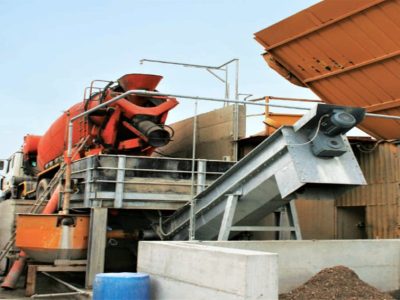

Concrete Recycling System
Simple & Cost-Effective Solution for Concrete Recycling

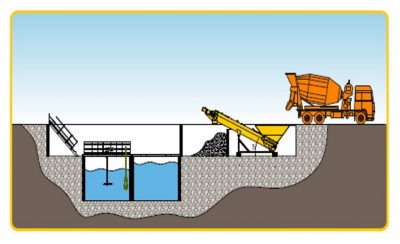

Our concrete recycling system is used in concrete batching plants to separate aggregates from water, i.e. residual inert from the washing of concrete mixer and mixer trucks, with aggregates grain size from 0.3 mm up to 40 mm.
The complete concrete recycling system consists of a heavy structure screw conveyor made of hot galvanised carbon steel, powerful liquid stirrer, 2 underwater pumps, connection pipe and safety gangway. This is system is reliable and easy to maintain, as attested by our customers worldwide.

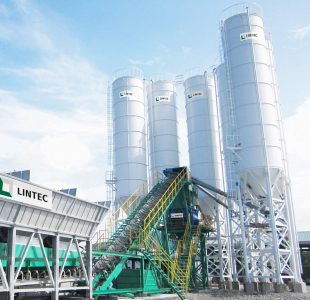

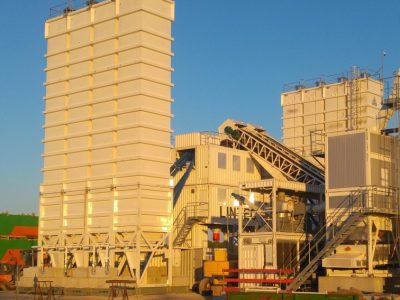

Cement Silo
Demountable panel-type bolted silos for easy transportation and simple installation
Our panel-type silos are manufactured using sophisticated manufacturing techniques. These silo panels are water-proofed by a special gasket. The panel bolted silos are available from 30 tons to 1000 tons to cater to clients’ required storage capacity. Its modular construction provides flexibility in shipping them around the world, without high shipping and land transportation costs.
Erection of the cement silos can be done effectively with local resources. Lintec & Linnhoff provides a dedicated technician who will supervise and ensure that the silos are assembled and conform to the highest standards of safety and productivity. Such arrangement keeps the erection costs under control.
Control Cabin
Italian-made prefabricated modular control cabin with unique design, quality materials and robust build
This control cabin is manufactured with steel and aluminium alloy materials. Its sturdy frame is made from thick galvanised steel tubes with profiles assembled between them. Doors and windows are composed of anodised aluminium to ensure a longer lifetime. The walls and rooftop covers are made up of insulated panels with iron armature and foamed polyurethane materials with 40mm thickness, and a painted steel sheet with coil coating system comprise the exterior steel surface.
Each control cabin’s floor is made up of 18mm waterproof wooden panels, with the upper surface covered by anti-static linoleum. The entire floor perimeter and the interior part of the corners are settled by a painted steel baseboard that make the frame structure stronger.
Rain flows into the top gutters in a particular profile in the upper frame and drains water away through special holes. At the bottom of the cabin is where rainwater flows 10cm under the floor, avoiding infiltration.

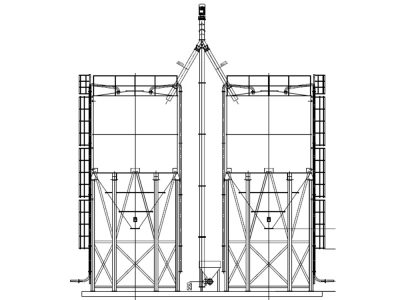

Screw Conveyor
Reliable and efficient screw conveyors
Our screw conveyors are suitable for extracting, batching and conveying cement and other inert matters of any kind. They can be easily assembled with strong flanges as well as strong hanger-bearings with bushing and greasers properly protected against wear and designed according to the density of the transported material. With screw conveyors, lubrication is done using special greasing points. It also features special customised screw conveyors with multi-chamber seals to handle hot materials.
Silo Accessories Kit & Dust Filter
Italian-made silo accessories kit & dust filter for efficient silo operations

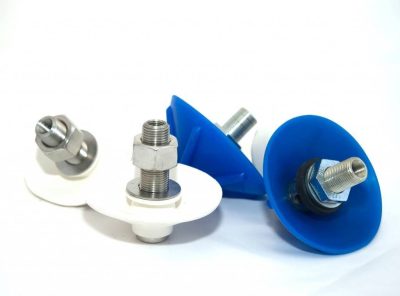

Our accessories kit for each silo comprises of manual butterfly valve, pressure relief valve, high & low levels Indicator and aeration pads with mounting brackets. Known for its good quality and reliable components, they provide our clients with an assuring performance and reliability for long-term use.
Our Dust Filter was designed and manufactured with top-grade aluminium alloy and stainless steel. It contains a pulse air jet cleaning component, air tank, impulse valves, air distribution manifold and a control board. The hinged cover design enables easy extraction of the cartridges from the top side to allow easy access to the filtering units and pulse air jet cleaning system for simple and quick maintenance.
Skyfilter cartridge is suitable for numerous kinds of powders. This innovative high-performance filter cuts down the level of pollution while improving the efficiency and filtering quality. Having been applied on silos with different kinds of powders, it’s long been recognised for its compact and solid structure that makes installation simple for both existing and new plants.

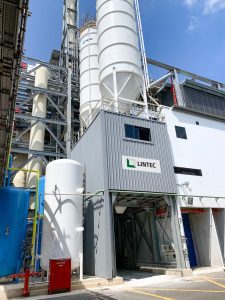

Waste Management Systems
Sturdy and reliable waste treatment plant for fixing and stabilising hazardous wastes
A waste treatment plant is used for mixing hazardous wastes and other industrial waste materials such as kiln ash, used activate carbon, used blasting sand material, with a binding agent such as cement, lime and fine silica to produce a homogenous mixture for safe disposal at landfills or reuse in land reclamation projects. The whole plant operation is fully automated by a process system software to reduce costs while keeping operators safe. The waste treatment plant is also known as fixation plant or solidification/stabilisation plant or waste management plant.
