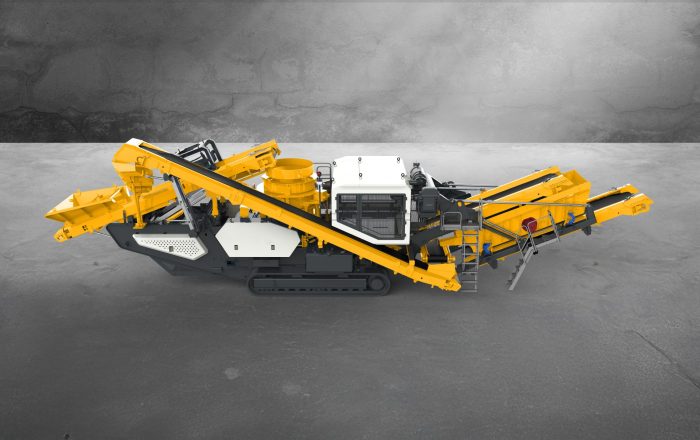

Lintec TLC Tracked Cone Mobile Unit

Click to enlarge

ABOUT

The Lintec TLC Tracked Cone Mobile Unit with an on-board Generator Set is a fully integrated tracked processing unit. It comprises a Lintec LC Cone Crusher and a re-circulation screen installed on a complete tracked chassis that gives high mobility and quick set-up times making it ideal for quarries, demolition and recycling sites. Powered with electricity, The Lintec TLC is equipped with hydraulic conveyors and all related components of the cone crusher, such as lubrication package, cooling system, live frame including all safety guards, walkways and handrails on board a single tracked chassis. This results in a shorter set-up time of 1-2 hours before crushing operations can start. The Lintec Tracked Cone Mobile Unit can be easily incorporated with the Lintec TLJ Tracked Jaw Mobile Unit and the Lintec TSC Tracked Screen Mobile Unit for complete Mobile crushing and screening operation.

Description

FEATURES & BENEFITS

  • Fully integrated tracked processing unit: Includes an on-board generator set.
  • High mobility and quick set-up times: Features Lintec LC Cone Crusher and re-circulation screen on a complete tracked chassis, ideal for quarries, demolition, and recycling sites.
  • Electric-powered with hydraulic features: Equipped with hydraulic conveyors and all related components of the cone crusher, such as lubrication package, cooling system, live frame with safety guards, walkways, and handrails.
  • Shorter set-up time: Crushing operations can start within 1-2 hours.
  • Flexible integration: Can be easily incorporated with Lintec TLJ Tracked Jaw Mobile Unit and Lintec TSC Tracked Screen Mobile Unit for a complete mobile crushing and screening operation.

SPECIFICATIONS

Description TLC 380S-E TLC 480S-E
Capacity

52 – 209 t/h

102 – 395 t/h
Crusher Model

LC380

LC480
Weight

37,000 kg

42,500 kg
Dimensions (W x L x H)

3,000 mm x 13,300 mm x 4,400 mm

3,280 mm x 15,000 mm x 4,400 mm
Crusher Feed Opening

185 mm

215 mm
Crusher CSS Range

6 – 32 mm

10 – 38 mm

Specifications are subject to technical modifications.

Additional information
Crusher Plant Type

Tracked Plants
Crusher Type

Cone
BROCHURE

Lintec TLC Tracked Cone Mobile Unit
