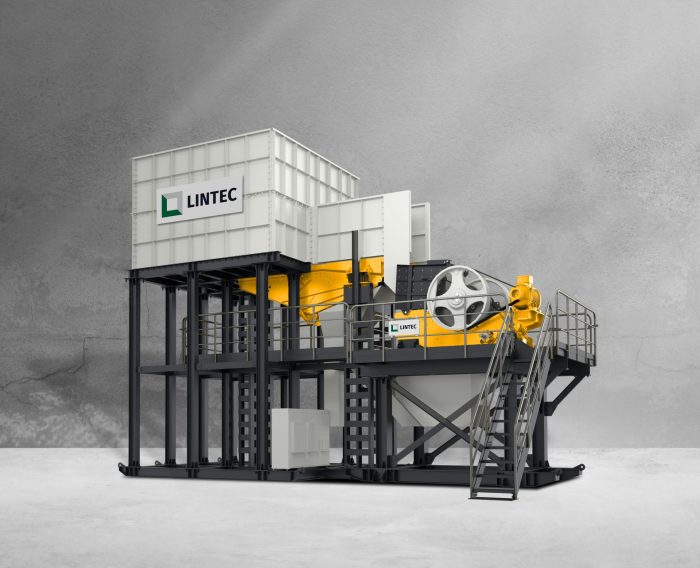

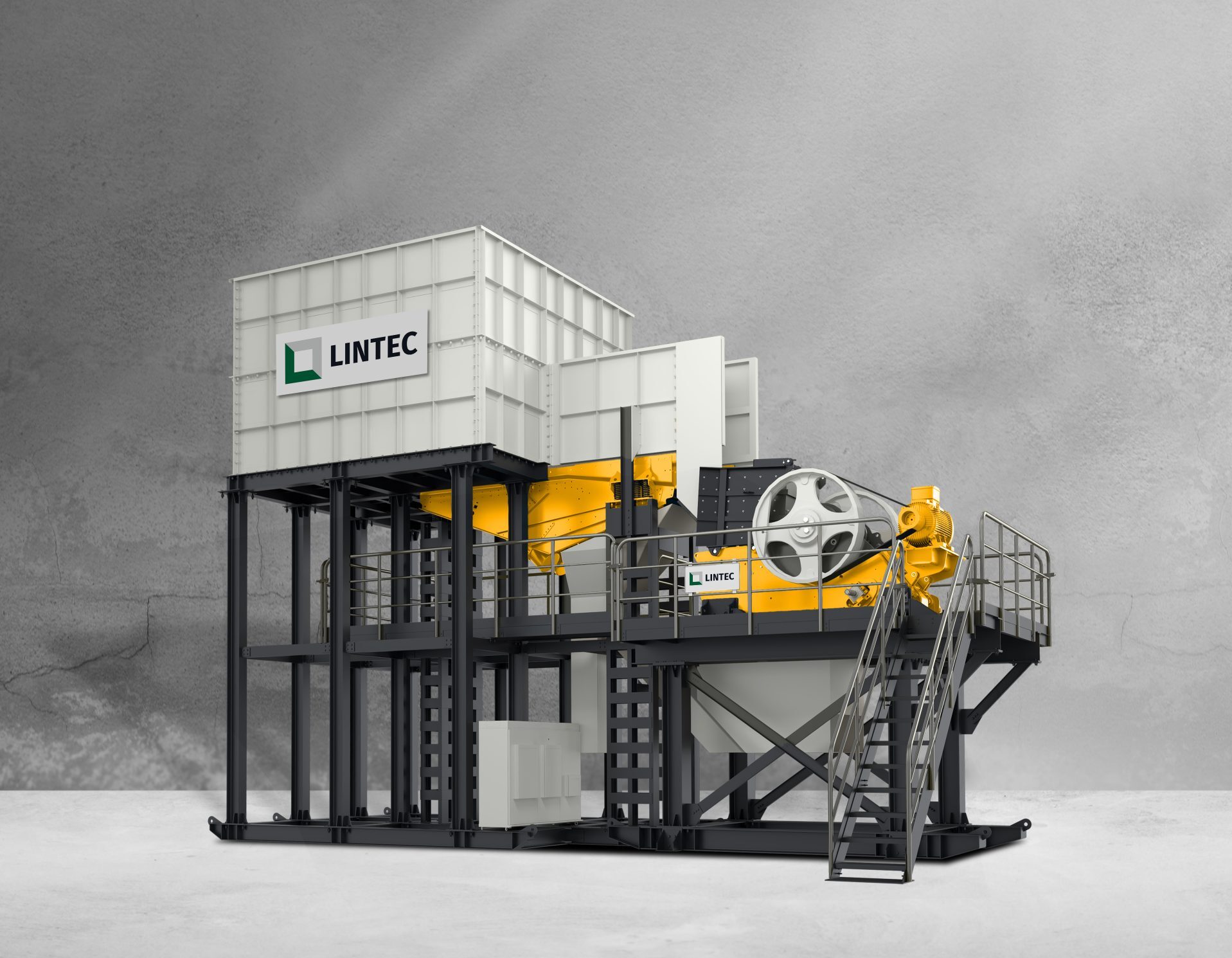

Lintec MLJ Jaw Modules

Click to enlarge

ABOUT

The Lintec MLJ Modular Crushing & Screening Plant is pre-engineered and pre-manufactured, ensuring faster delivery and easy installation. It is ideal for a wide range of crushing and screening applications in project quarries, small-scale quarries or mines, demolition, and recycling project sites. The Lintec M-LJ Module serves the primary crushing function, featuring a heavy-duty box-section dump hopper, carefully selected Lintec LFD or LGF Grizzly Feeder, and the rugged Lintec LJ Jaw Crusher. Together with the pre-engineered and pre-built steel structure, including walkways, handrails, and product conveyors, this module offers the highest safety standards in the industry. The capacity of the Lintec M-LJ Jaw Modules ranges from 100t/h to a maximum of 450-500t/h, making it ideal to work independently for single-stage crushing or to be incorporated into secondary cone crushers such as the LH HSI Crushers, or screen modules for complete crushing and screening solutions.

Description

FEATURES & BENEFITS

  • Pre-engineered and pre-manufactured: Ensures faster delivery and easy installation.
  • Versatile applications: Suitable for project quarries, small-scaled quarries or mines, demolition, and recycling project sites.
  • Primary crushing function: Features heavy-duty box-section dump hopper, Lintec LFD or LGF Grizzly Feeder, and Lintec LJ Jaw Crusher.
  • High safety standards: Includes pre-engineered and pre-built steel structure with walkways, handrails, and product conveyors.
  • Wide capacity range: Lintec M-LJ Jaw Modules range from 100t/h to 450-500t/h.
  • Flexible operation: Can work independently for single stage crushing or be incorporated into secondary cone or screen modules for complete crushing and screening solutions.

SPECIFICATIONS

Description MLJ 106 MLJ 116 MLJ 120
Capacity
200 t/h
300-500 t/h
400-500 t/h
Feeder Model
LGF1142
LGF1148
LGF1260
Conveyor Belt
B1000 x 13mL
B1200 x 13mL
B1200 X 13mL
Structural Weight
25,800 kg
28,700 kg
34,400 kg
Space Requirement
11.5m x 7m
12.5m x 7.5m
14m x 8m
Installation Power
110+ kW
132+ kW
160+ kW
Electrical and Control
Integrated control design; external power supply plug-and-play
Optional
Transfer hopper; Conveyors; Control Cabinet; Containerised Control Station; etc.

Specifications are subject to technical modifications.

Additional information
Crusher Plant Type

Modular Plants
Crusher Type

Jaw
