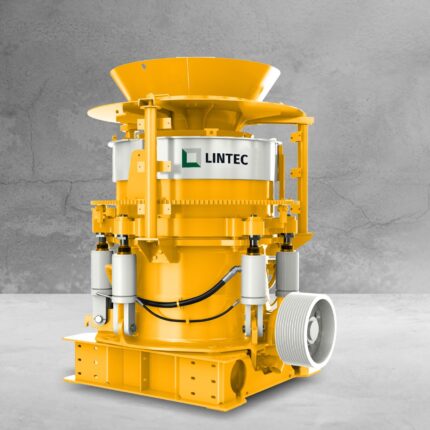

Lintec LC Cone Crusher

Click to enlarge

ABOUT

The Lintec LC Cone Crushers are one the most reliable cone crushers available with proven track record of outstanding productivity and high adaptivity with a wide range of choice of crushing chambers.

Description

FEATURES & BENEFITS

  • Spider Bushing with grease lubrication design as top bearing support
  • Single eccentric bushing with multiple eccentric throws design to suit different crushing capacities
  • Large eccentric throw with high capacity.
  • High power with high reduction.
  • Premium components in lubrication and cooling packages
  • Optional Cone Crusher Intelligent Control System

SPECIFICATIONS

Description LC 380 LC 480 LC 680
Capacity

80 – 209 t/h

136 – 395 t/h

195 – 644 t/h
Inlet Diameter

⌀1360 mm

⌀1540 mm

⌀2104 mm
Motor Size
160 kW
250 kW
315 kW
Max Feed Size (W x L x H)
185 mm
215 mm
315 mm
Crusher Weight (W x L)

9,200 kg

15,600 kg

25,850 kg

Specifications are subject to technical modifications.
