Concrete Mixer

Click to enlarge

ABOUT

Description

TWIN SHAFT CONCRETE MIXERS

Our twin-shaft concrete mixers are equipped with a planetary gearbox that offers more advantages than any traditional gearbox. The planetary gearbox offers a compact design and provides outstanding power transmission efficiencies. With its load being transmitted and shared between multiple planet gears, torque capability is greatly increased. Experience using a twin shaft mixer that ensures minimum heat generation within its gearbox.

FEATURES & BENEFITS

  • 2-Stage planetary gearbox for strong, equal torque and low heat generation.
  • Equipped with special hardened materials to protect mixing arms, mixing blades and wall liners with high hardness & wear resistance.
  • Inclusive of special cleaning rings to prevent the build-up of concrete lumps on twin shafts.
  • Can handle maximum aggregate grain size of 150mm (from MB3000 onwards with 12% max).

SPECIFICATIONS

Specification MB750 MB1500 MB2250 MB2500 MB3000 MB3750 MB4000 MB6000 MB6750 MB9000
Loading Capacity
750 litres
1500 litres
2250 litres
2500 litres
3000 litres
3750 litres
4500 litres
6000 litres
6750 litres
9000 litres
Compacted Concrete Per Batch
500 litres
1000 litres
1500 litres
1670 litres
2000 litres
2500 litres
3000 litres
4000 litres
4500 litres
6000 litres
Ave. Time Per Cycle
75 secs
75 secs
75 secs
75 secs
75 secs
75 secs
75 secs
75 secs
75 secs
75 secs
Max. Aggregate Grain Size
0 – 100
32 – 70
35%
70 – 100
15% mm
0 – 100
32 – 70
35%
70 – 100
15% mm
0 – 120
32 – 80
35% max.
80 – 100
10% max.
10 – 120
10% max. mm
0 – 120
32 – 80
35% max.
80 – 100
10% max.
10 – 120
10% max. mm
0 – 150
32 – 100
35% max.
100 – 120
13% max.
120 – 150
12% max. mm
0 – 150
32 – 100
35% max. 100 – 120 13% max.
120 – 150
12% max. mm
0 – 150
32 – 100
35% max.
100 – 120
13% max.
120 – 150
12% max. mm
0 – 150
32 – 100
35% max.
100 – 120
13% max.
120 – 150
12% max. mm
0 – 150
32 – 100
35% max.
100 – 120
13% max.
120 – 150
12% max. mm
0 – 150
32 – 100
35% max.
100 – 120
13% max.
120 – 150
12% max. mm
Motor
18.5 kW
2 x 18.5 kW
2 x 22 kW
2 x 30 kW
2 x 37 kW
2 x 45 kW
2 x 55 kW
2 x 75 kW
2 x 90 kW
2 x 110 kW
Scraping Blades
12
12
16
16
12
12
16
16
16
16
Hydraulic Unit Power Supply
1.5 kW
1.5 kW
1.5 kW
1.5 kW
1.5 kW
1.5 kW
3 kW
3 kW
3 kW
3 kW
Weight
2800 kg
4300 kg
4650 kg
5400 kg
6700 kg
7800 kg
9000 kg
10800 kg
11100 kg
14000 kg
Overall Dimensions (L x W x H)
2510 x 1610 x 1165 mm
2800 x 1970 x 1460 mm
3240 x 1970 x 1460 mm
3430 x 2150 x 1560 mm
3270 x 2320 x 1675 mm
3510 x 2610 x 1755 mm
4080 x 2610 x 1755 mm
4300 x 2860 x 1940 mm
4300 x 2860 x 1940 mm
4835 x 3230 x 2120 mm

Automatic high-pressure washing system for twin-shaft mixers is available upon request.

PLANETARY PAN MIXERS

Lintec’s Planetary Pan Mixers are designed for simplicity, efficiency, durability and high performance. They are also engineered for quality, reliability and lower running and maintenance costs for the industry users. The high-performance mixing system has been built with a strong mixing drive, synchronised and coordinated mixing patterns for higher homogeneity as well as overlapping mixing stars and unique design features to match modern concrete mix designs. With many built-in standard features incorporated in the Planetary Pan Mixer, they provide optimum performance and unchallenged reliability.

FEATURES

  • Low running and maintenance costs.
  • Ability to produce ultra-high strength concrete and low/zero slump concrete.
  • (Optional) Hydraulically operated Fast Discharge Device (FDD).
  • Equipped with special hardened materials for Wear Plates and to protect Mixing Arms with high hardness and wear resistance.
  • Interchangeable and reversible mixing blades and interchangeable wear resistance liners.
  • High-Speed Impact Agitator (Optional) feature is available in certain common models
  • Planetary Gearbox with hardened gears all in oil sump for proper lubrication and cooling
  • Hydrodynamic coupling for soft starts & protection against overloads to transmission.

BENEFITS

SPECIFICATIONS

Specification EPM500 EPM750 EPM1125 EPM1500 EPM2250 EPM3000 EPM3750 EPM4500
Loading Capacity
500 litres
750 litres
1125 litres
1500 litres
2250 litres
3000 litres
3750 litres
4500 litres
Compacted Concrete Per Batch
330 litres
500 litres
750 litres
1000 litres
1500 litres
2000 litres
2500 litres
3000 litres
Diameter
1600 mm
1900 mm
2300 mm
2500 mm
2800 mm
3300 mm
3300 mm
3600 mm
Stars & Mixing Blades
1 x 2
1 x 2
1 x 3
2 x 2
2 x 2
3 x 3
3 x 3
3 x 3
Power
11 kW
18.5 kW
37 kW
45 kW
75 kW
90 kW
110 kW
132 kW
Hydraulic Unit Power
2.2 kW
2.2 kW
3 kW
3 kW
3 kW
4 kW
4 kW
7.5 kW
High-Speed Impact Agitator
√
√
X
√
√
√
X
X
Weight
1700 kg
2025 kg
3740 kg
4880 kg
5590 kg
8800 kg
9100 kg
12800 kg
Overall Dimensions (Approx. Dia x Height)
1900 x 1720 mm
2300 x 2265 mm
2300 x 2342 mm
2800 x 2450 mm
2800 x 2580 mm
2800 x 2730 mm
3300 x 2900 mm
3300 x 3050 mm

CONTINUOUS CONCRETE MIXERS

Continuous Mixers are energy efficient. They are recommended for use in road base construction, cement-treated base (CTB), mortar supply as well as large capacity concrete supply for Roller Compacted Concrete (RCC) Dam projects.

Linetc continuous mixers can accommodate output capacities of up to 400 m3/h even with concrete mix designs of Zero Slump and high proportion of large aggregates which can be typically found in RCC Dam and road base projects.

The counter-rotation of the twin shafts with a high number of paddles generates intense turbulence at the overlapping zone. For the vertical and horizontal motions, the cement is disintegrated, finely distributed and uniformly mixed with the aggregates (fed on the mixer in the right proportions). MC Mixers ensure big hourly production with very low energy consumption.

FEATURES

  • Large output continuous concrete supply for special high concrete demand projects.
  • Consistent high-quality concrete mix.
  • Low operating & maintenance costs.

BENEFITS

SPECIFICATIONS

Specification MC100 MC150 MC200 MC250 MC300 MC400
Output (fresh Concrete)
100 m3/hour
150 m3/hour
200 m3/hour
250 m3/hour
300 m3/hour
400 m3/hour
Workable Grain Size
90 mm
70 mm
70 mm
70 mm
70 mm
70 mm
Mixer Drive
25 / 18 HP/kW
30 / 22 HP/kW
2 x 20 / 15 HP/kW
2 x 25 / 18 HP/kW
2 x 30 / 22 HP/kW
2 x 40 / 30 HP/kW
Mixing Paddles
40 nos.
40 nos.
48 nos.
48 nos.
48 nos.
48 nos.
Weight
2800 kg
2900 kg
5300 kg
5400 kg
5900 kg
6000 kg
Overall Est. Dimensions (L x W x H)
4040 x 1206 x 820 mm
4040 x 1206 x 820 mm
4030 x 1620 x 1220 mm
4030 x 1620 x 1220 mm
4180 x 1840 x 1330 mm
4180 x 1840 x 1330 mm

All specifications are subjected to changes without prior notice.

Additional information
Asphalt Capacity

Concrete Functionality

BROCHURE

Concrete Mixer

Categories ,

Related products

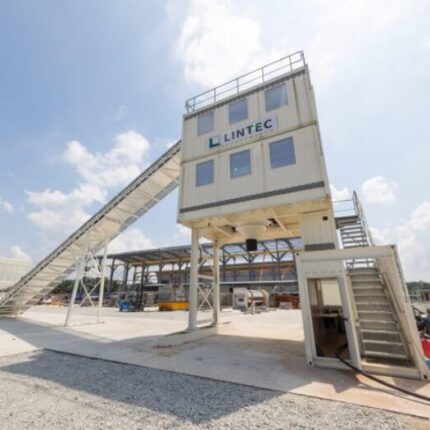

Lintec CCE Containerised Concrete Plant
